PYQs Based Test - 04 : Control Systems

Topics Covered

Sample Questions from this Test

1. The loop-gain function L(s) of a control system with unity feedback is given to be $L\left(s\right)=\frac{k}{\left(s+1\right)\left(s+2\right)\left(s+3\right)}$, where k > 0. If the gain cross-over frequency of the loop-gain function is less than its phase cross-over frequency, the closed-loop system is
   View solution & explanation →

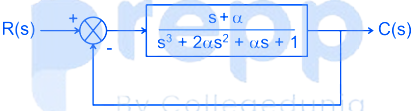

2. A closed-loop system is shown in the figure. The system parameter α is not known. The condition for asymptotic stability of the closed loop system is


   View solution & explanation →
3. A system with transfer function $G\left(s\right)=\frac{1}{s^2+1}$ has zero initial conditions. The percentage overshoot in its step response is _________ %.
   View solution & explanation →

Showing 3 of 25 questions. Start the test to attempt all of them.

Test Instructions

• The test contains 25 questions and a total of 38 marks.
• You will have 180 minutes to complete the test. The timer cannot be paused once started.
• Negative marking: 0.25 mark(s) deducted per wrong answer.
• Use the question palette to mark questions for review and navigate freely.
• Detailed solutions and analytics are available immediately after submission.
• This is a free practice test. No login required to attempt.
