mediumMCQNEET 20172026Physics
4 marks (−1)

Figure shows a circuit contains three identical resistors with resistance each, two identical inductors with inductance each, and an ideal battery with emf . The current ' ' through the battery just after the switch closed is:

  1. A
  2. B
  3. C
  4. D

Solution & Step-by-step Explanation

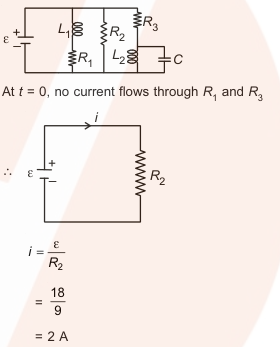

At the instant the switch is closed (), an inductor behaves as an infinite resistance (open circuit) because it opposes the sudden change in current.Therefore, no current flows through the two branches containing inductors.The current only flows through the single resistor directly connected in the main path (assuming standard circuit configuration where one is in series with the battery and the others are blocked).


Practice this question

Try it yourself before checking the explanation above.

Figure shows a circuit contains three identical resistors with resistance each, two identical inductors with inductance each, and an ideal battery with emf . The current ' ' through the battery just after the switch closed is:
A
B
C
D
