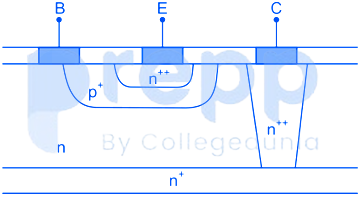

The correct circuit representation of the structure shown in the figure is
- A
- B
- C
- D
Solution & Step-by-step Explanation
Points to note to solve this question.
1) Emitter and collector are n-type so the transistor will be n-p-n
∴ Options (3) and (4) are eliminated
2) The diode is connected between base and collector
Base is n-type
Collector is n⁺⁺type
Hence collector will be of n-type and base will be p-type.
