GATE EE 2014 Question Paper (02-Mar-2014) (Shift 2)

The magnitude Bode plot of a network is shown in the figure.



The maximum phase angle ϕ${}_m$ and the corresponding gain G${}_m$ respectively, are

A periodic waveform observed across a load is represented by

V≤ft( t ) = ≤ft\{ {*20c 1 + ω t, 0 ≤ ω t < 6π \\ - 1 + ω t, 6π ≤ ω t < 12π } .

The measured value, using moving iron voltmeter connected across the load, is

n the bridge circuit shown, the capacitors are loss free. At balance the value of capacitance C1 in microfarad is –

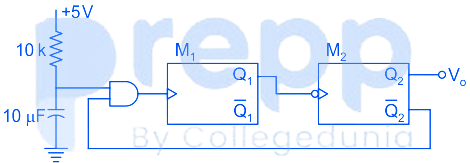

Two monoshot multivibrators, are positive edge triggered (M₁) and another negative edge triggered (M₂), are connected as shown in figure



The monoshots M₁ and M₂ when triggered produce pulses of width T₁ and T₂ respectively, where T₁ > T₂. The steady state output voltage v₀ of the circuit is

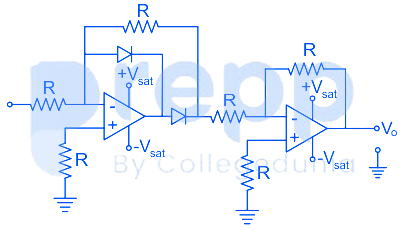

The transfer characteristic of the op – amp circuit shown in figure is
