GATE IN 2016 Question Paper (31-Jan-2016) (Shift 2)

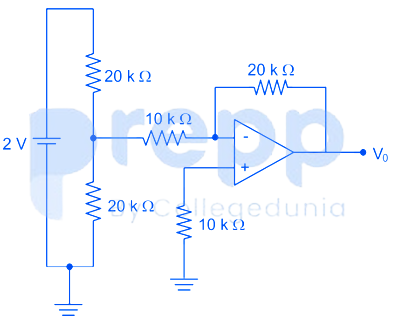

In the circuit given below, the op-amp is ideal. The output voltage V₀ in volt is_______.

In the circuit given below, the diodes D₁ and D₂ have a forward voltage drop of 0.6 V. The op-amp used is ideal. The magnitude of the negative peak value of the output V₀ in volt is______.

The Boolean expression XY + ( X′ + Y′) Z is equivalent to

In the digital circuit given below, F is

A 3 ½ digit DMM has an accuracy specification of ± 1 % of full scale (accuracy class 1). A reading of 100.0 mA is obtained on its 200 ms full scale range. The worst case error in the reading in milliampere is ±________.
