GATE IN 2022 Question Paper (06-Feb-2022) (Shift 2)

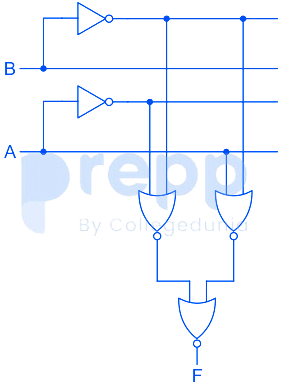

The logic block shown has an output 𝐹 given by _____

In which of the following bridge(s) is the balancing condition frequency-independent?

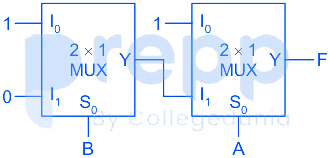

The output F of the digital circuit shown can be written in the form(s) ________

Given M = $\left[\begin{array}{ccc}2& 3& 7\\ 6& 4& 7\\ 4& 6& 14\end{array}\right]$, which of the following statement(s) is/are correct?

An analog-to-digital converter with resolution 0.01 V converts analog signals between 0 V to +10 V to an unsigned binary output. The minimum number of bits (in integer) in the output is _______
