PYQs Based Test - 01 : Network Theory

Consider the circuit shown in the figure.



The value of v₀ (rounded off to one decimal place) is ______ V.

A connection is made consisting of resistance A in series with a parallel combination of resistances B and C. Three resistors of value 10 Ω, 5 Ω, 2 Ω, are provided. Consider all possible permutations of the given resistors into the positions A, B, C, and identify the configurations with maximum possible overall resistance, and also the ones with minimum possible overall resistance. The ratio of maximum to minimum values of the resistances (up to second decimal place) is __________.

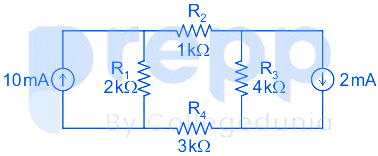

The magnitude of current (in mA) through the resistor R₂ in the figure shown is_______.

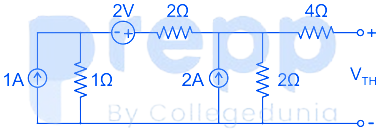

In the circuit shown below, the Thevenin voltage V${}_{TH}$ is

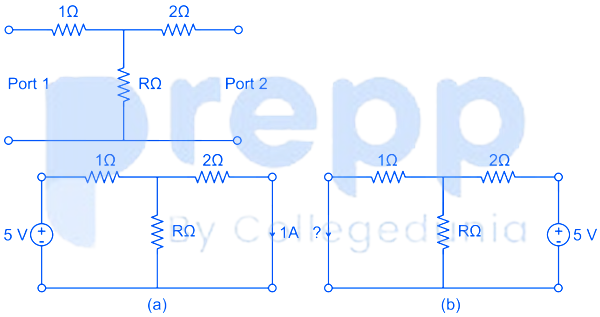

Consider the two-port resistive network shown in the figure. When an excitation of 5 V is applied across Port 1, and Port 2 is shorted, the current through the short circuit at Port 2 is measured to be 1 A (see (a) in the figure).

Now, if an excitation of 5 V is applied across Port 2, and Port 1 is shorted (see (b) in the figure), what is the current through the short circuit at Port 1?
