PYQs Based Test - 07 : Measurements

A 200 mV full scale dual-slope 3 ½ digit DMM has a reference voltage of 100 mV and a first integration time of 100 ms. For an input of [100 + 10 Cos (100πt)] mV, the conversion time (without taking the auto-zero phase time into consideration) in millisecond is______.

A high Q coil having distributed (self) capacitance is tested with a Q-meter. First resonance at ω₁ = 10⁶rad/s is obtained with a capacitance of 990 pF. The second resonance at ω₂ = 2 ×10⁶rad/s is obtained with a 240 pF capacitance. The value of the inductance (in mH) of the coil is (up to one decimal place) ______.

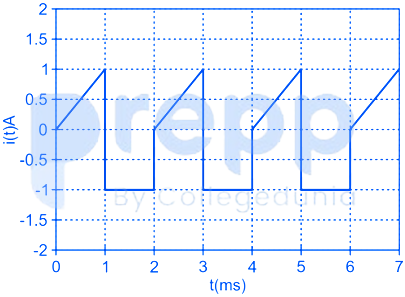

A current waveform, i(t), shown in the figure, is passed through a Permanent Magnet Moving Coil (PMMC) type ammeter. The reading of the ammeter up to two decimal places is

A 6 ½ digit timer-counter is set in the 'time period' mode of operation and the range is set as `ns'. For an input signal, the timer-counter displays 1000000. With the same input signal, the timer-counter is changed to 'frequency' mode of operation and the range is set as 'Hz'. The display will show the number

A bar primary current transformer of rating 1000/1 A, 5VA, UPF has 995 secondary turns. It exhibits zero ratio error and phase error of 30 minutes at 1000 A with rated burden. The watt loss component of the primary excitation current in ampere is ________ (rounded off to one decimal place)
