PYQs Based Test - 10 : Analog Electronics

For the following circuit with an ideal OPAMP, the difference between the maximum and the minimum values of the capacitor voltage (V${}_c$) is __________.

The output Vo of the ideal OpAmp used in the circuit shown below is 5 V. Then the value of resistor RL in (kΩ) ?

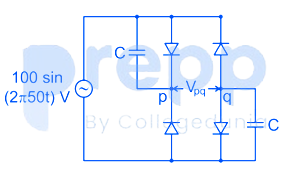

The diodes given in the circuit are ideal. At t= 60 ms, V${}_{pq}$ (in Volts) is

In the circuit given below, the diodes D₁ and D₂ have a forward voltage drop of 0.6 V. The op-amp used is ideal. The magnitude of the negative peak value of the output V₀ in volt is______.

In the circuit shown below, the knee current of Ideal Zener diode is 10 mA. To maintain 5 volts across the load R${}_L$, the minimum value of R${}_L$ in Ω’s and the minimum power rating of the Zener diode in mw, respectively are ________
