PYQs Based test 10: Electrical Machines

A 200 V DC series motor, when operating from rated voltage while driving a certain load, draws 10 A current and runs at 1000 r.p.m. The total series resistance is 1 Ω. The magnetic circuit is assumed to be linear. At the same supply voltage, the load torque is increased by 44%. The speed of the motor in r.p.m. (rounded to the nearest integer) is ________

A separately excited DC motor runs at 1000 rpm on no load when its armature terminals are connected to a 200 V DC source and the rated voltage is applied to the field winding. The armature resistance of this motor is 1 Ω. The no – load armature current is negligible. With the motor developing its full load torque, the armature voltage is set so that the rotor speed is 500 rpm. When the load torque is reduced to 50% of the full load value under the same armature voltage conditions, the speed rises to 520 rpm. Neglecting the rational losses, the full load armature current (in Ampere) is _________.

A 4 – pole, separately excited, wave wound DC machine with negligible armature resistance is rated for 230 V and 5 kW at a speed if 1200 rpm. If the same armature coils are reconnected to forms a lap winding, what is the rated voltage (in volts) and power (in kW) respectively at 1200 rpm of the reconnected machine if the field circuit is left unchanged?

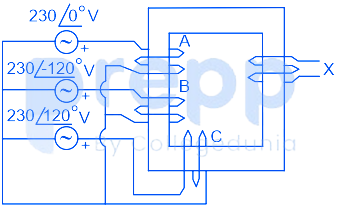

Windings 'A', 'B' and 'C' have 20 turns each and are wound on the same iron core as shown, along with winding 'X' which has 2 turns. The figure shows the sense (clockwise/anti-clockwise) of each of the windings only and does not reflect the exact number of turns. If windings 'A', 'B' and 'C' are supplied with balanced 3-phase voltages at 50 Hz and there is no core saturation, the no-load RMS voltage (in V, rounded off to 2 decimal places) across winding 'X' is

A separately excited dc motor runs at 1500 rpm under no load with 200 V applied to the armature. The field voltage is maintained at its rated value. The speed of the motor, when it delivers a torque of 5 Nm is 1400 rpm as shown in the figure. The rotational and armature reaction are neglected. For the motor to deliver a torque of 2.5 Nm at 1400 rpm the armature voltage to be applied is
