PYQs Based test 2: Electric Circuits

For the network shown, the equivalent Thevenin voltage and Thevenin impedance as seen across terminals 'ab' is

The input impedance, Zᵢₙ (s), for the network shown is

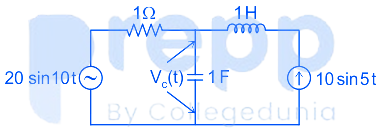

The voltage across the capacitor, as shown in the figure, is expressed as vₜ(t) = A₁ sin (ω₁t – θ₁) + A₂ sin (ω₂t – θ₂)



The value of A₁ and A₂ respectively, are

The Norton’s equivalent source in amperes as seen into the terminals X and Y is _________.

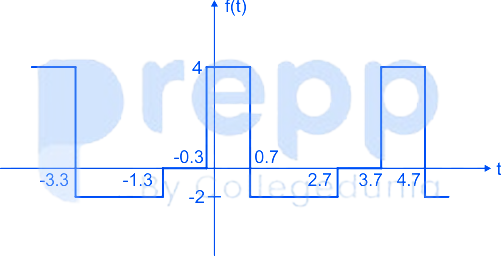

The mean square value of the given periodic waveform f(t) is ________
