PYQs Based test 23: Power Electronics

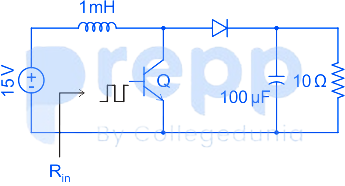

Consider the boost converter shown. Switch Q operating at 25 kHz with a duty cycle of 0.6. Assume the diode and switch to be ideal. Under steady-state condition, the average resistance Rᵢₙ as seen by source is ______ Ω. (Round off to 2 decimal places.)

The input voltage V${}_{DC}$ of the buck-boost converter shown below varies from 32 V to 72 V. Assume that all components are ideal, inductor current is continuous, and output voltage is ripple free. The range of duty ratio D of the converter for which the magnitude of the steady-state output voltage remains constant at 48 V is

A fully-controlled three-phase bridge converter is working from a 415 V, 50 Hz AC supply. It is supplying constant current of 100 A at 400 V to a DC load. Assume large inductive smoothing and neglect overlap. The rms value of the AC line current in amperes (round off to two decimal places) is ________.

A phase controlled single phase rectifier, supplied by an AC source, feeds power to an R-L-E load as shown in the figure. The rectifier output voltage has an average value given by $V_O=\frac{Vm}{2\pi }\left(3+cos\alpha \right).$ Where 𝑉${}_{\text{m}}$ = 80𝜋 volts and 𝛼 is the firing angle. If the power delivered to the lossless battery is 1600 W, 𝛼 in degree is________ (up to 2 decimal places).

A single-phase fully-controlled thyristor converter is used to obtain an average voltage of 180 V with 10 A constant current to feed a DC load. It is fed from single-phase AC supply of 230 V, 50 Hz. Neglect the source impedance. The power factor (round off to two decimal places) of AC mains is ________.
