PYQs Based test 24: Power Electronics

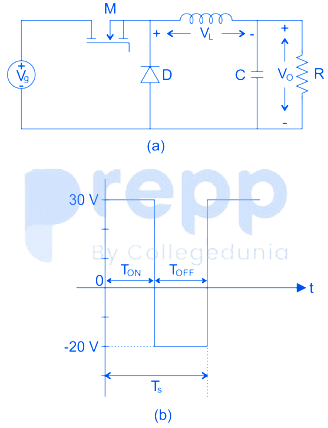

A buck converter, as shown in Figure (a) below, is working in steady state. The output voltage and the inductor current can be assumed to be ripple free. Figure (b) shows the inductor voltage $V_L$ during a complete switching interval. Assuming all devices are ideal, the duty cycle of the buck converter is ________.

A phase-controlled, single-phase, full bridge converter is supplying a highly inductive DC load. The converter is fed from a 230 V, 50 Hz AC source. The fundamental frequency in Hz of the voltage ripple on the DC side is

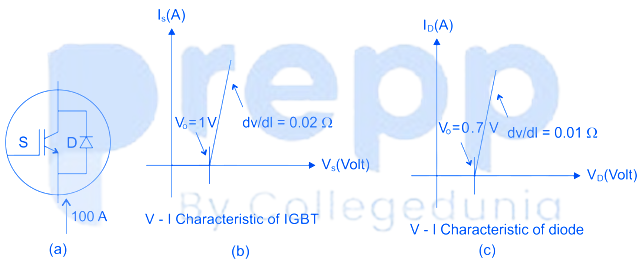

A steady dc current of $100A$ is flowing through a power module (S, D) as shown in Figure (a). The $V-I$ characteristics of the IGBT (S) and the diode (D) are shown in Figures (b) and (c), respectively. The conduction power loss in the power module (S, D), in watts, is ________.

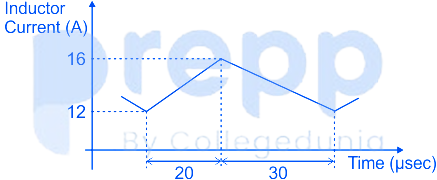

The steady state current flowing through the inductor of a DC-DC buck boost converter is given in the figure below. If the peak-to-peak ripple in the output voltage of the converter is 1 V, then the value of the output capacitor, in µF, is ___________. (round off to nearest integer)

A 3-phase grid-connected voltage source converter with DC link voltage of 1000 V is switched using sinusoidal Pulse Width Modulation (PWM) technique. If the grid phase current is 10 A and the 3-phase complex power supplied by the converter is given by (−4000 − j3000) VA, then the modulation index used in sinusoidal PWM is ___________. (round off to two decimal places)
