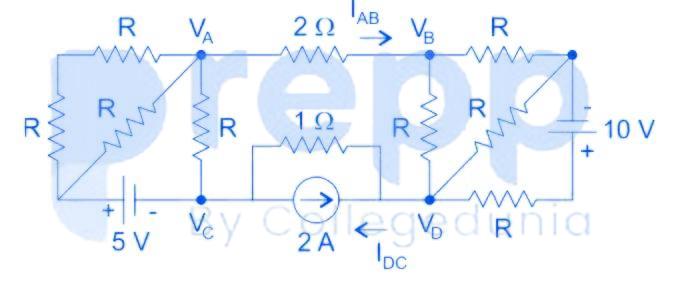

If V – V = 6 V then V – V is


  1. A
    -5 V
  2. B
    2 V
  3. C
    3 V
  4. D
    6 V

Solution & Step-by-step Explanation

V – V = 6 V

So current in the branch will be

I = 6/2 = 3 A

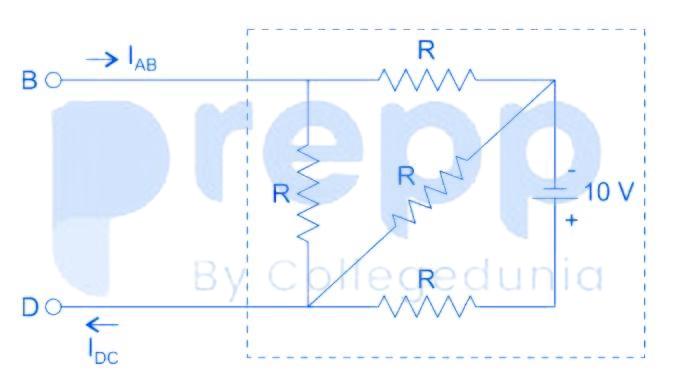

We can see, that the circuit is a one part circuit looking from terminal BD as shown below


For a one port network current entering one terminal, equals the current leaving the second terminal. Thus the outgoing current from A to B will be equal to the incoming current from D to C as shown.

i.e. I = I = 3 A


The total current in the resistor 1 Ω will be

I₁ = 2 + I

= 2 + 3 = 5 A

V = 1 × (-I₁)

= -5 V
