GATE EE 2018 Question Paper (10-Feb-2018) (Shift 2)

Medium 65 Questions 180 min 100 marks

⚡ Live Test Mode Available

Take this as a timed mock test

180 min · 100 marks · Full test mode with leaderboard

Previous Year Questions

65medium

Questions

Attempted

Correct

Wrong

0/5 attempted

Question No: 16Difficulty: mediumMarks: 1mcq

Consider a lossy transmission line with V ₁and V ₂as the sending and receiving end voltages, respectively. Z and X are the series impedance and reactance of the line, respectively. The steady-state stability limit for the transmission line will be

Question No: 17Difficulty: mediumMarks: 1mcq

The graph of a network has 8 nodes and 5 independent loops. The number of branches of the graph is

Question No: 18Difficulty: mediumMarks: 1mcq

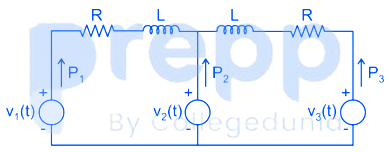

In the figure, the voltages are v₁(t) = 100 cos (ωt), v₂(t) = 100 cos (ωt + π/18) and v₃(t) = 100 cos (ωt + π/36). The circuit is in sinusoidal steady state, and R << ωL. P₁, P₂ and P₃ are the average power outputs. Which one of the following statements is true?

Question No: 19Difficulty: mediumMarks: 2mcq

Match the transfer functions of the second-order systems with the nature of the systems given below. Transfer functions Nature of system P: \frac{15}{s ^{2} + 5 s + 15} Q: \frac{25}{s ^{2} + 10 s + 25} R: \frac{35}{s ^{2} + 18 s + 35} I: Overdamped II: Critically damped III: Underdamped

Transfer functions	Nature of system
P: $\frac{15}{s ^{2} + 5 s + 15}$ Q: $\frac{25}{s ^{2} + 10 s + 25}$ R: $\frac{35}{s ^{2} + 18 s + 35}$	I: Overdamped II: Critically damped III: Underdamped

Question No: 20Difficulty: mediumMarks: 2mcq

A positive charge of 1 nC is placed at (0, 0, 0.2) where all dimensions are in metres. Consider the x - y plane to be a conducting ground plane. Take \in_{0} = 8.85 \times 1 0^{- 12} F/M. The z component of the E field at (0, 0, 0.1) is closest to
