The input-output relationship of an LTI system is given below.


For an input x[n] shown below


the peak value of the output when x[n] passes through h is ________

Correct Answer

Solution & Step-by-step Explanation

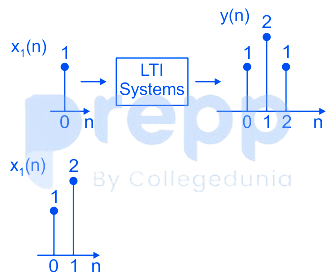

Given that:

x(n) = δ(n)

x₁(n) = δ(n)


x₂(n) = δ(n) + 2δ(n–1)

⇒ x2(n) = x₁(n) + 2x₁(n–1)

⇒ y₂(n) = y₁(n) + 2y₁(n–1)



The peak value of Output when x(n) passes through h is 5.

Practice this question

Try it yourself before checking the explanation above.

The input-output relationship of an LTI system is given below.


For an input x[n] shown below


the peak value of the output when x[n] passes through h is ________
